All Jungheinrich fork lifts, stand ups, tuggers,
Post Reply
Billygoat
Posts: 0
Joined: Wed Mar 22, 2017 12:26 pm

Make Jungheinrich Pallet Jack Speed Faster

Post by Billygoat »

How to change maximum travel speed on a Jungheinrich rider pallet truck model ECR 327. Need to increase the travel speed on these units because they are too slow for our warehouse. We got new pallet trucks to replace our old Crown units but these Jungheinrich are not fast enough. Is there a way to adjust the speed through the meter panel or canging drivers modes or some easy fix.

User avatar
butchfork
Site Admin
Posts: 39
Joined: Sun Aug 21, 2016 12:01 am

Re: Make Jungheinrich Pallet Jack Speed Faster

Post by butchfork »

The maximum speed on your Jungheinrich rider pallet truck model ECR 327 cannot be adjusted by you through the panel. It can only be adjusted faster or slower by using the Curtis controller handset. You dont even need the Jungheinrich software to do it.

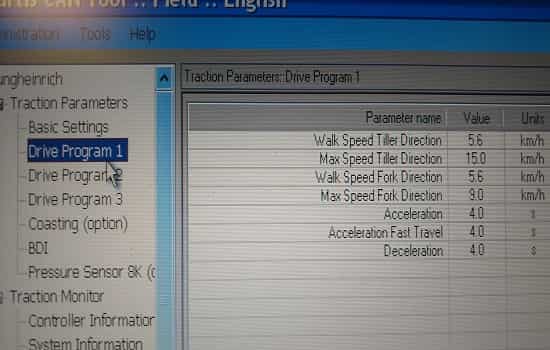

See screenshot below that shows what page you need to be on with some examples of parameter setting. You need to be in Traction parameters, Drive Program 1, 2 or 3 depending on how the truck is set up. You can change tiller direction max speed and fork direction max speed. Just click on the "Value" column to change the value. Note that this one is set for KM/H not MPH. There are many other parameters you change change as well- walk speed, acceleration rate, deceleration rate, etc.
Jungheinrich travel speed adjustment procedure.
Jungheinrich travel speed adjustment procedure.
CERTIFIED TECHNICIAN - Jungheinrich Level 5
Caterpillar- Mitsubishi- Nissan
